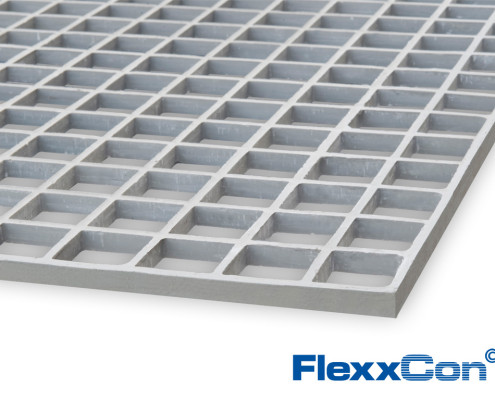

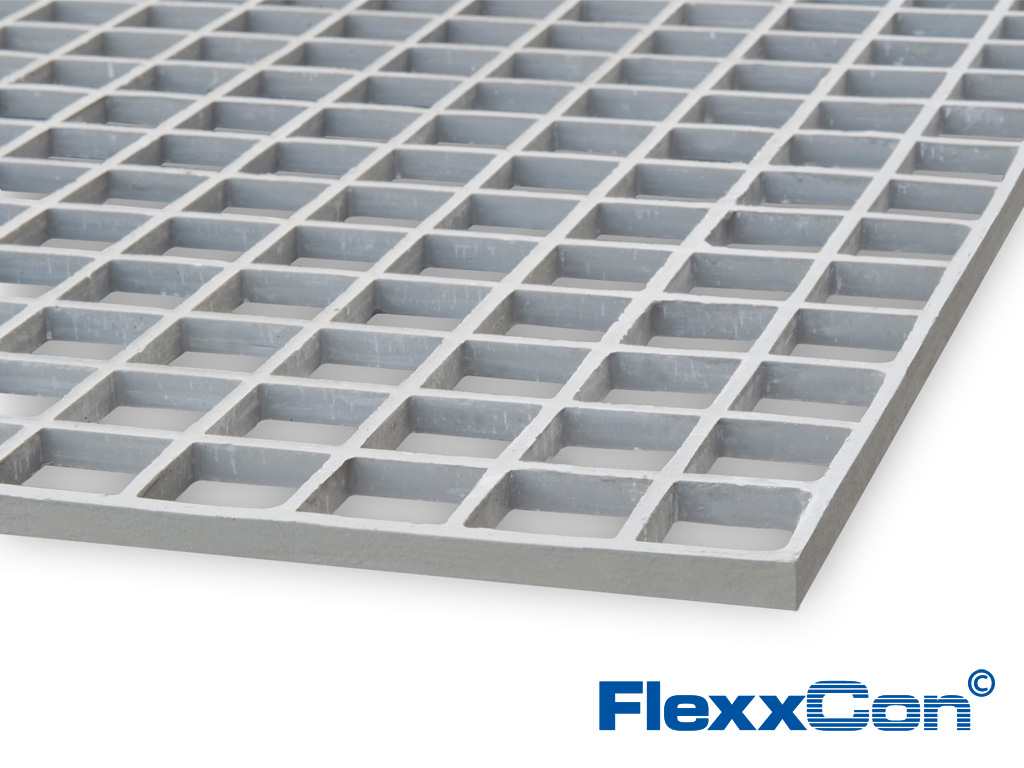

FRP grating 13mm 50×50 ISO Meniscus Grey

Multigrid grating is a lightweight Glassfibre Reinforced Plastic grating with multiple applications.
The grating is used vertically as screening in and alongside conveyor belts, fencing, air filters, etc. The mesh size of 50 x 50 mm ensures your hands do not fit through it, making it a proven safety barrier. Furthermore, when fully supported, the grating can be used horizontally as protection, anti-slip layer or pressure distributor. The Meniscus Top ensures that slipping and falling on slippery surfaces is virtually impossible. In addition to grey, the grating is also available in green

Thickness13 mm
ColourGrey, approximately RAL 7035
Resin typeIsophthalic Polyester

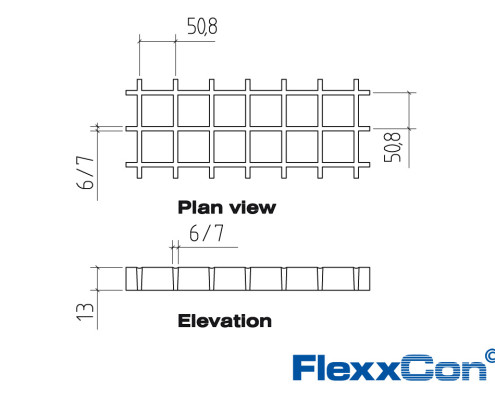

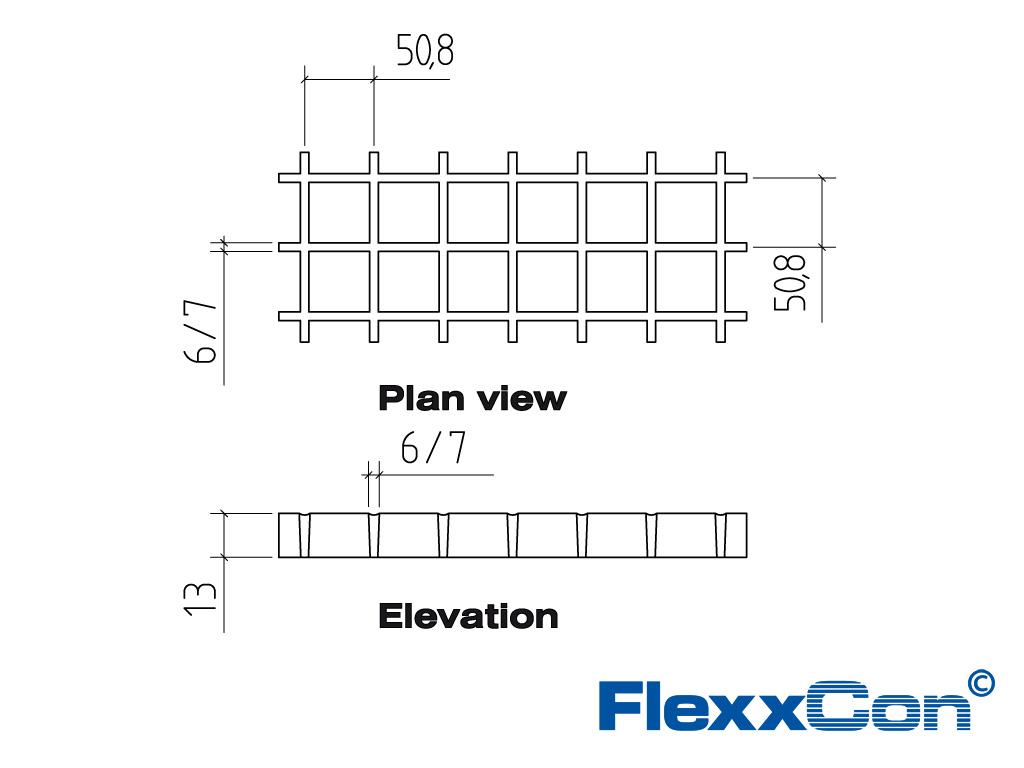

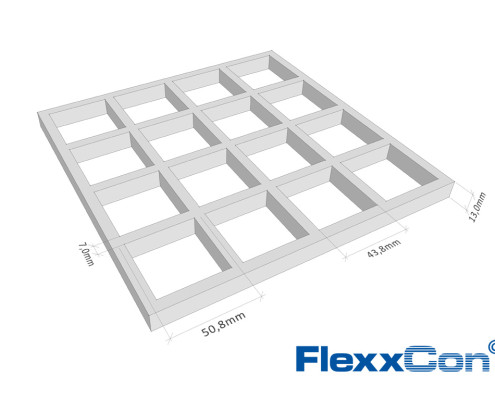

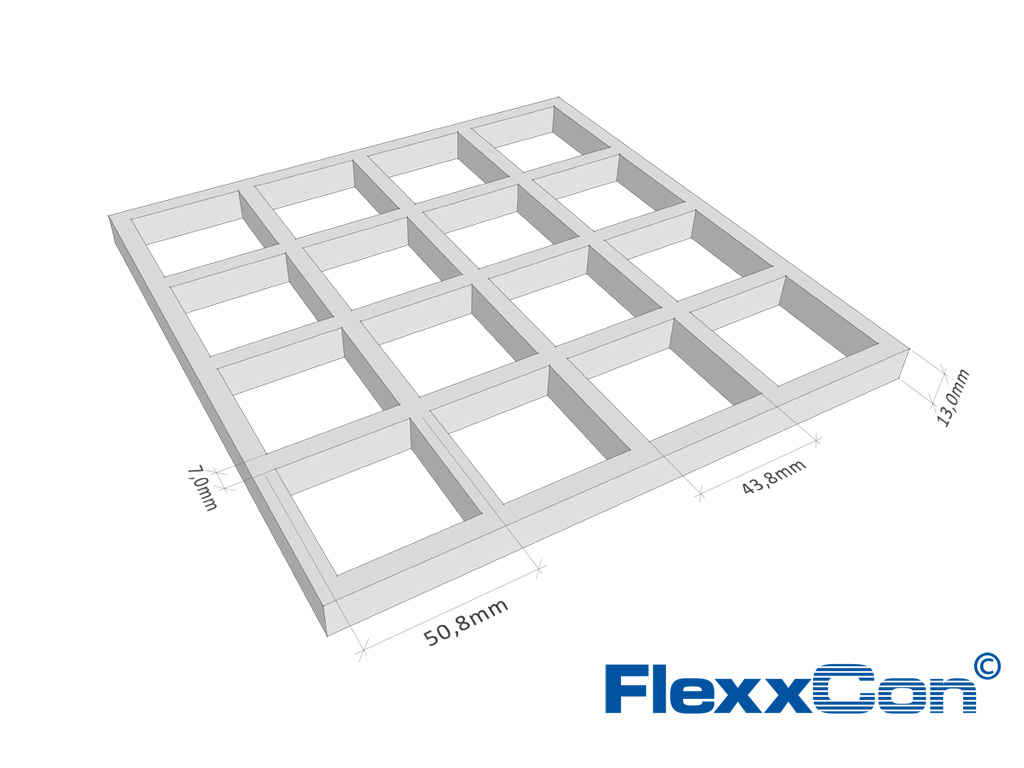

Mesh sizes50.8 mm x 50.8 mm
Top surfaceMeniscus Top surface
Weight4 kg/m²

This type of FRP grating is available in the following standard size:

3660 mm x 1220 mm   |   product code: R-13612-MGI5   |   Download datasheet

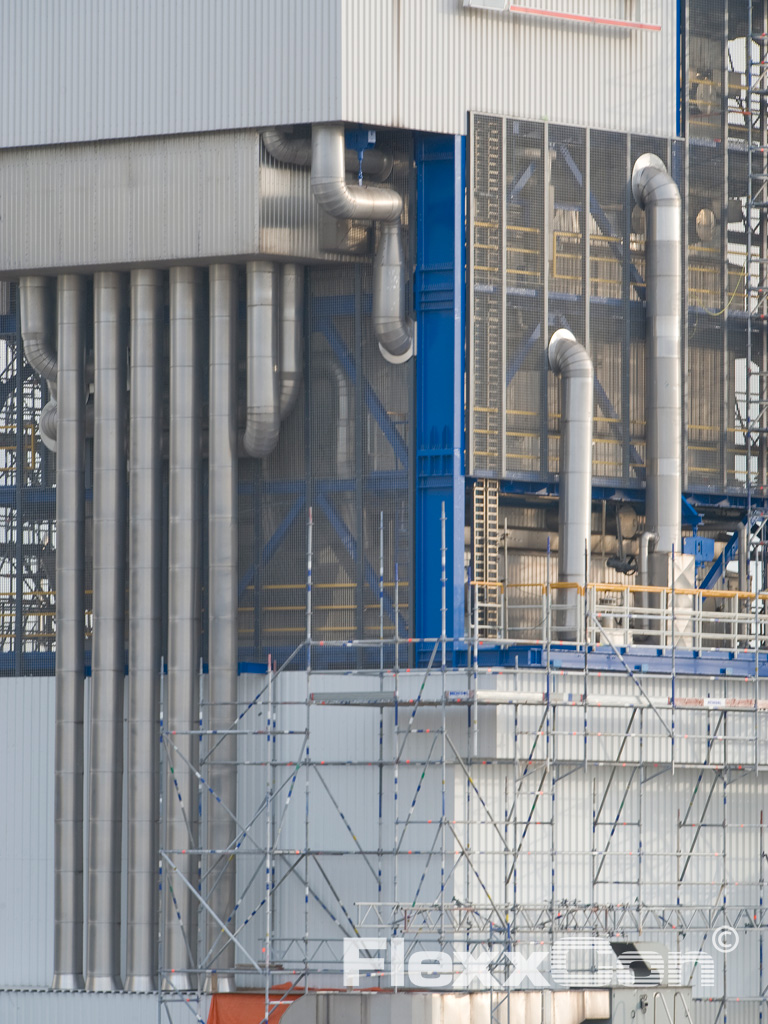

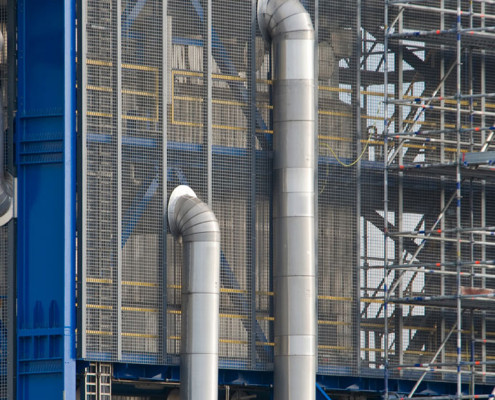

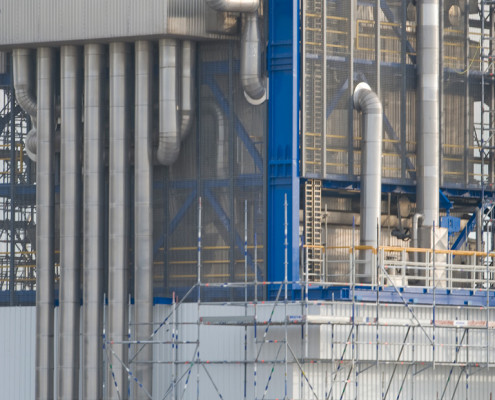

This FRP grating was applied in the following projects:
