FRP grating 30mm 19×19 ISO Meniscus Grey

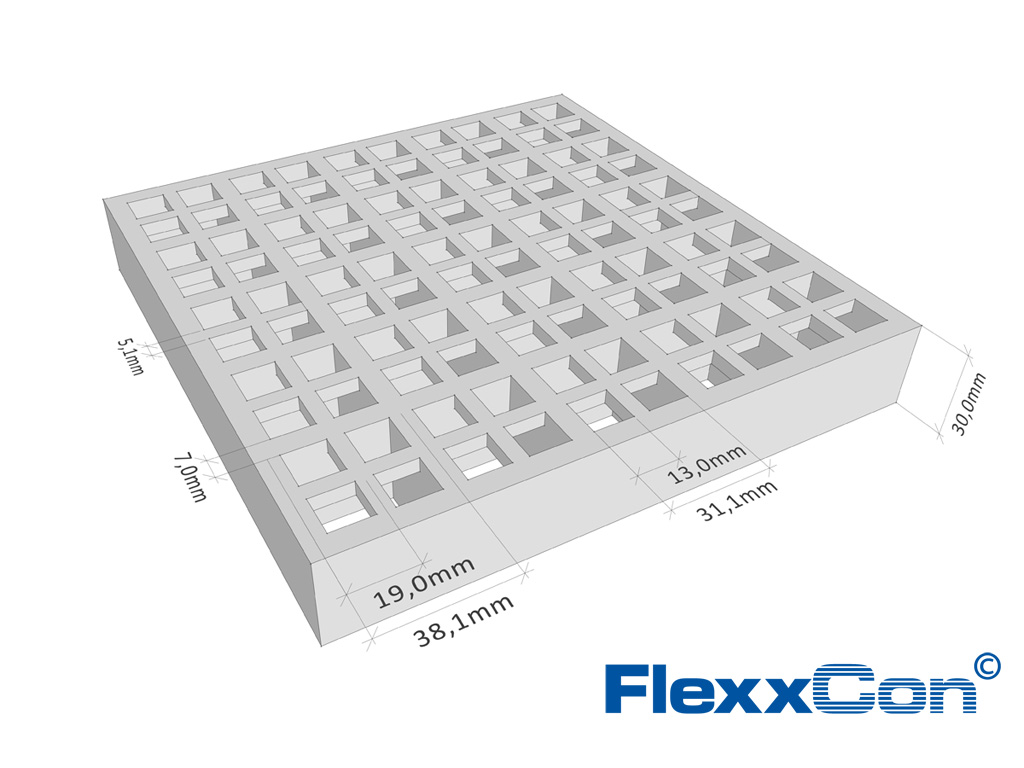

A FRP grating with a thickness of 30mm offers acceptable deflection requirements at medium spans up to 900 mm. The Isophthalic Polyester resin and layered fibreglass provide strength and chemical resistance in aggressive environments. This type of FRP grating has 19×19 mm meshes and a concave top (meniscus top surface), excellent non-slip properties. Grating with this mesh configuration comply with the ‘15 mm ball test’. A 15 mm ball cannot fall through the mesh size of 11 x 11 mm.
| Thickness | 30 mm |
| Colour | Grey, approximately RAL 7035 |
| Resin type | Isophthalic Polyester |
| Mesh size | 19 mm x 19 mm |
| Top surface | Meniscus Top surface |
| Weight | 17.5 kg/m² |
This type of FRP grating is available in the following standard sizes:
3660 mm x 1220 mm | product code: R-33612-MGI1 | Download datasheet
4000 mm x 1000 mm | product code: R-44010-MGI1 | Download datasheet

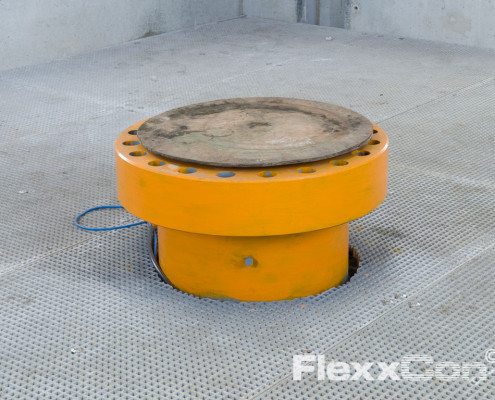

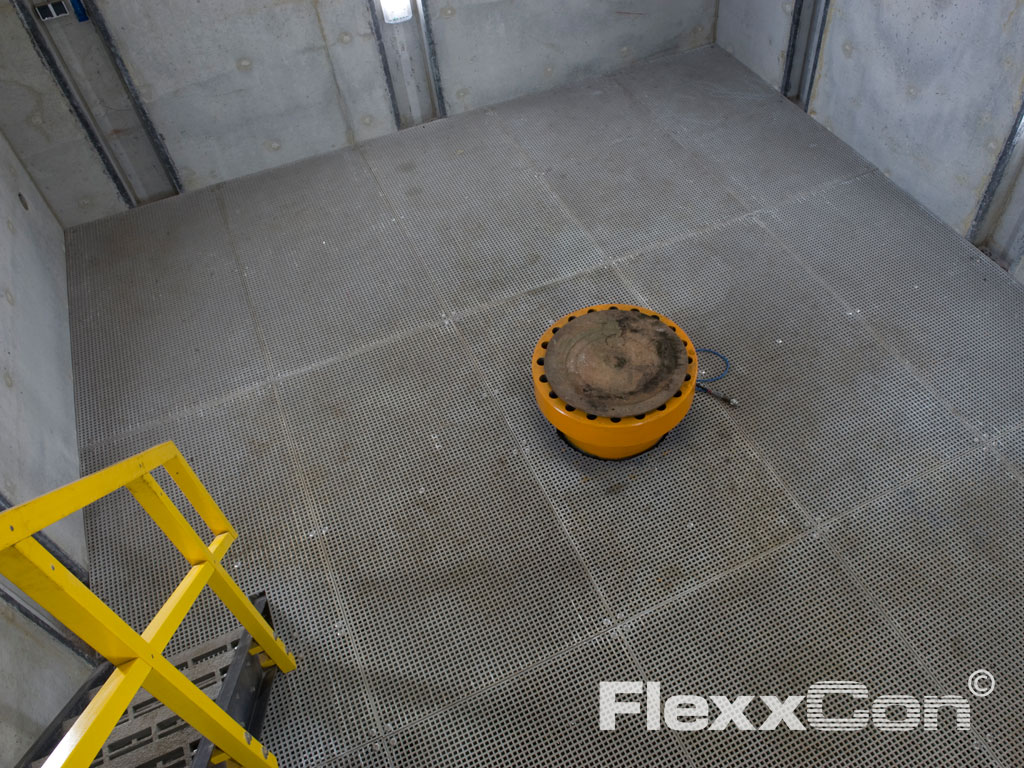

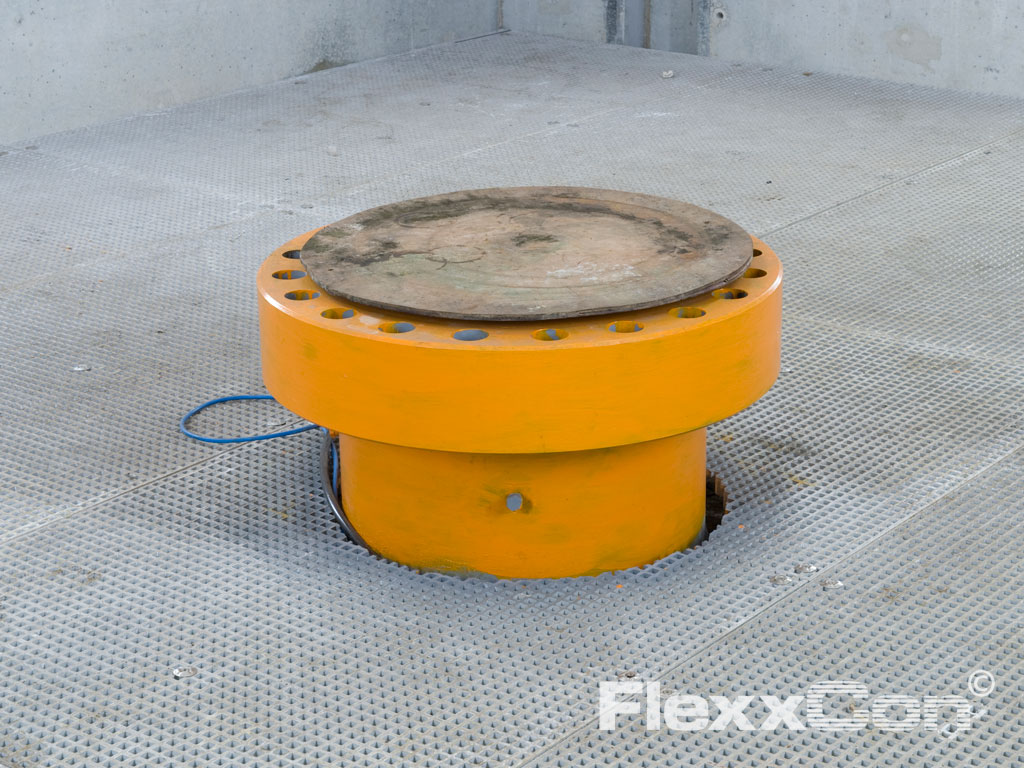

This FRP grating was applied in the following projects:
