FRP grating 30mm 19×19 ISO Quartz Grit Grey

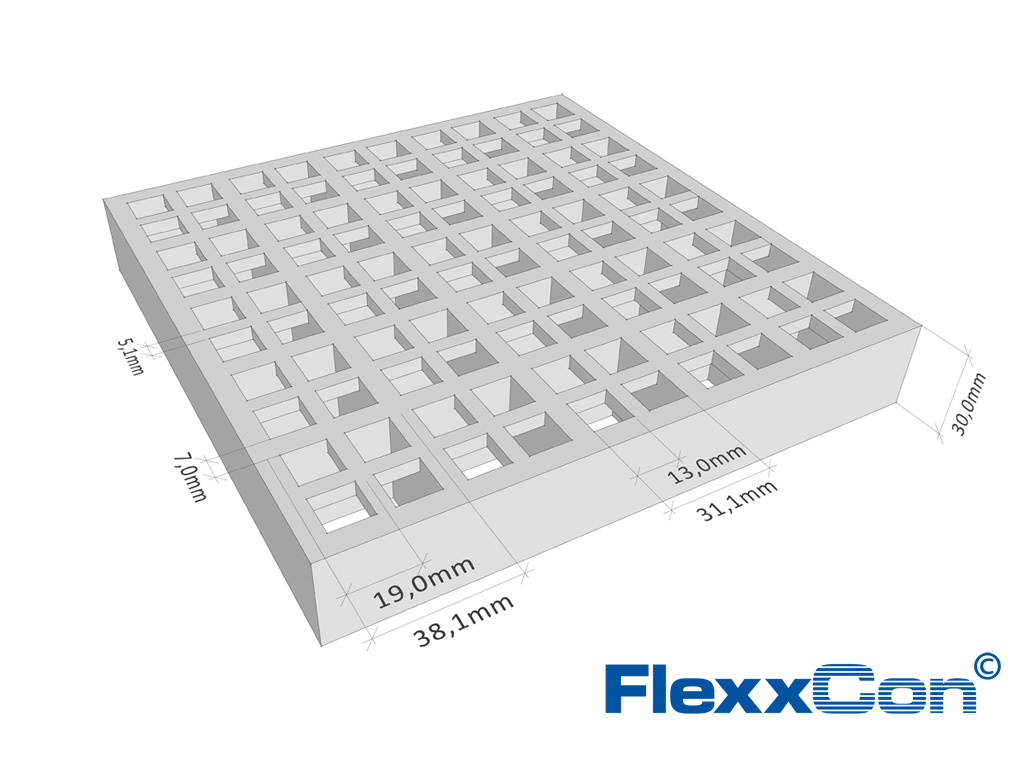

FRP grating with a thickness of 30 mm offers acceptable deflection at a span up to 900 mm. The Isophthalic Polyester resin and layered fibreglass result in strength and chemical resistance in aggressive environments. The FRP grating has a mesh size of 19×19 mm (micromesh) and a sanded (Quartz grit) surface. The smaller mesh size and the fine sanded surface make the grating perfect for application in marinas, etc. The grating has good anti-slip properties, but allows walking on them barefoot. Furthermore, the grating complies with the ‘15 mm ball test’.

Thickness30 mm
ColourGrey, approximately RAL 7035
Resin typeIsophthalic Polyester
Mesh sizes19 mm x 19 mm
Top surfaceQuartz Grit Top Surface
Weight17.5 kg/m²

This type of FRP grating is available in the following standard sizes:

2440 mm x 1220 mm   |   product code: R-32412-QGI1   |   Download datasheet
3048 mm x 915 mm     |   product code: R-33009-QGI1   |   Download datasheet
3660 mm x 1220 mm   |   product code: R-33612-QGI1   |   Download datasheet

This FRP grating was applied in the following projects:
