FRP grating 41mm 38×38 ISO Covered Grey

Grating with a solid cover plate (covered grating) is frequently used when things falling through is not desired or when a solid surface is required. Grating is supplied in the standard thickness of 40 mm in the colour grey. Under industrial loading, spans of up to 1100 mm are attainable. This type of grating is supplied standard with grit in the top surface.

Thickness38 mm
ColourGrey, approximately RAL 7035
Resin typeIsophthalic polyester
Mesh sizes38 mm x 38 mm
Top surfaceQuartz Grit (solid top surface)
Weight25 kg/m²

This type of FRP grating is available in the following standard size:

3660 mm x 1220 mm   |   product code: R-43612-QGI3   |   Download datasheet

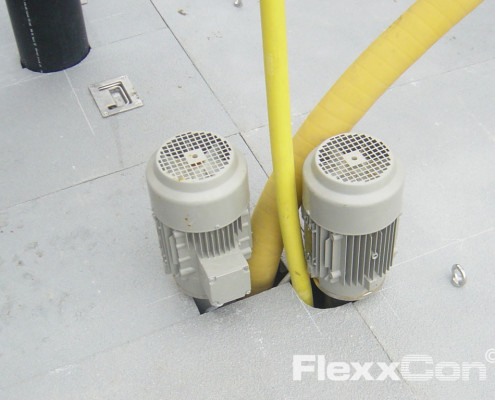

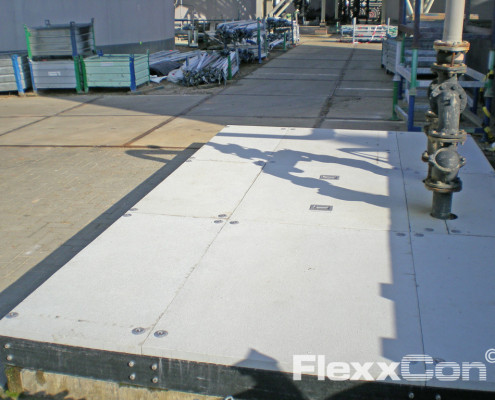

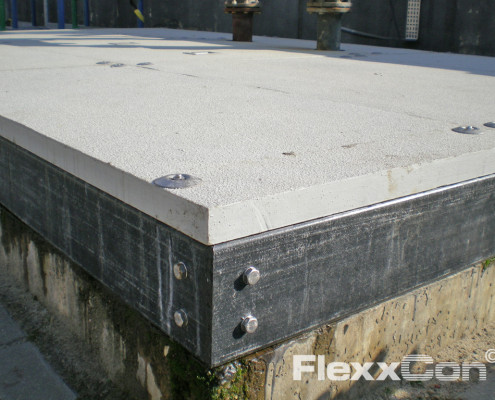

This FRP grating was applied in the following projects:
