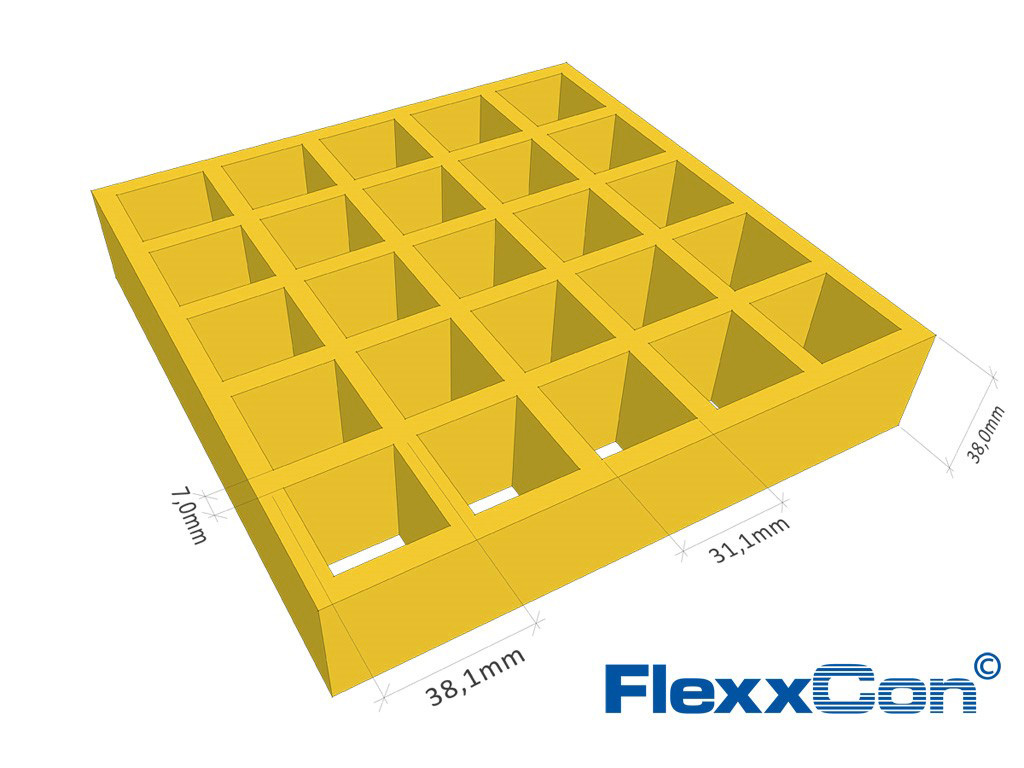

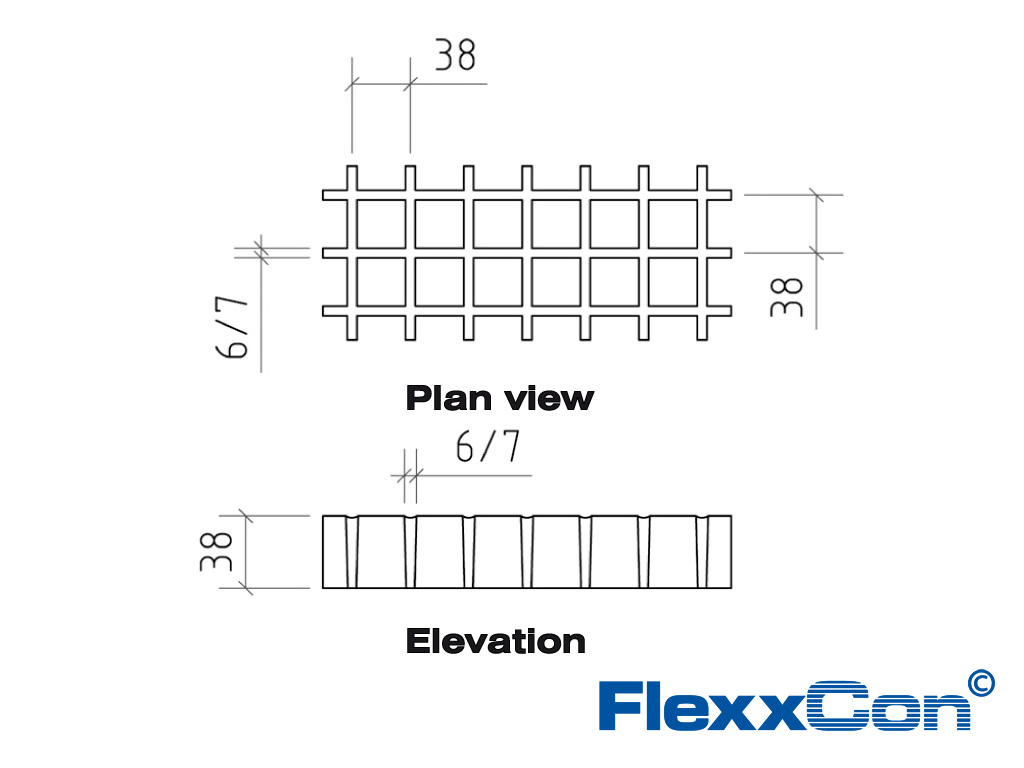

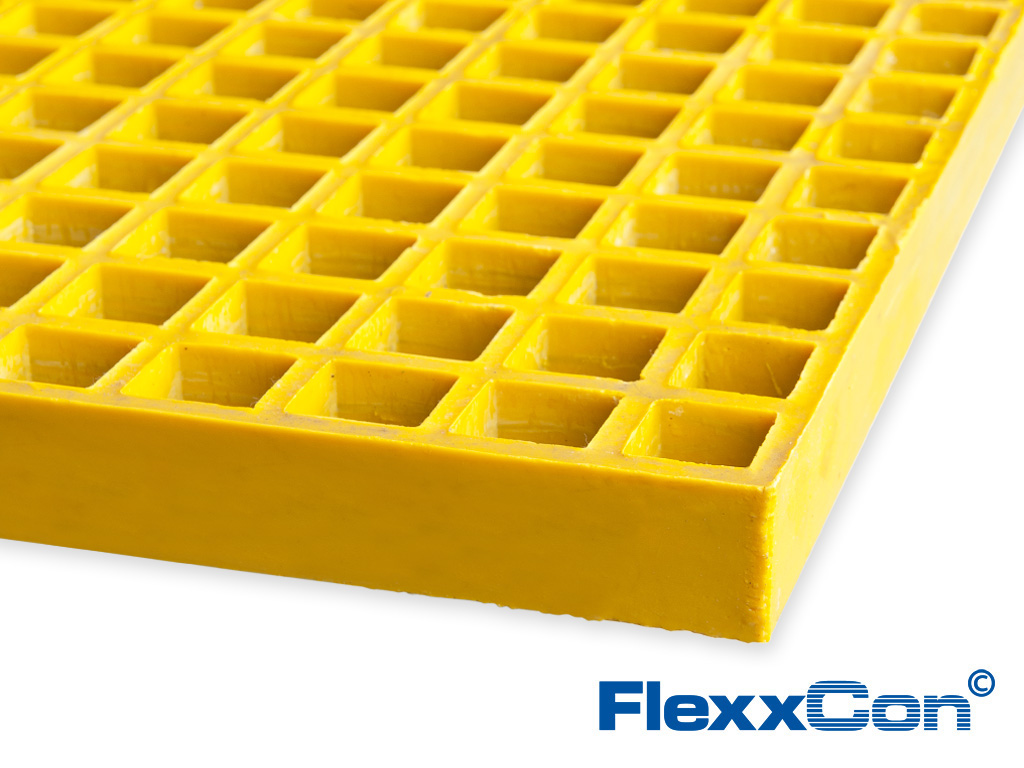

FRP grating 38mm 38×38 ISO Meniscus Yellow
A 38 mm thick grating is the most common grating thickness as well as the industrial standard. With this type of grating, net spans of up to 1100 mm with industrial load are easy to attain. Yellow is a traditional colour that is used in shipping. The meniscus/concave top ensures the grating has good anti-slip properties, even in wet conditions. Grating with these properties is also available in green and grey.
| Thickness | 38 mm |
| Colour | Yellow, approximately RAL 1023 |
| Resin type | Isophthalic Polyester |
| Mesh sizes | 38 mm x 38 mm |
| Top surface | Meniscus Top surface |
| Weight | 18.1 kg/m² |
This type of FRP grating is available in the following standard size:
3660 mm x 1220 mm | product code: R-43612-MEI3 | Download datasheet
