FRP grating 38mm 38×38 ISO Meniscus Grey

A 38mm thick grating is the most common grating thickness as well as the industrial standard. With this type of grating, net spans of up to 1100 mm with industrial load are easy to attain. FlexxCon has many panel sizes in stock which enables fast and competitive delivery. The grating has 38×38 meshes and has a meniscus top for ideal anti-slip properties.

Thickness38 mm
ColourGrey, approximately RAL 7035
Resin typeIsophthalic Polyester

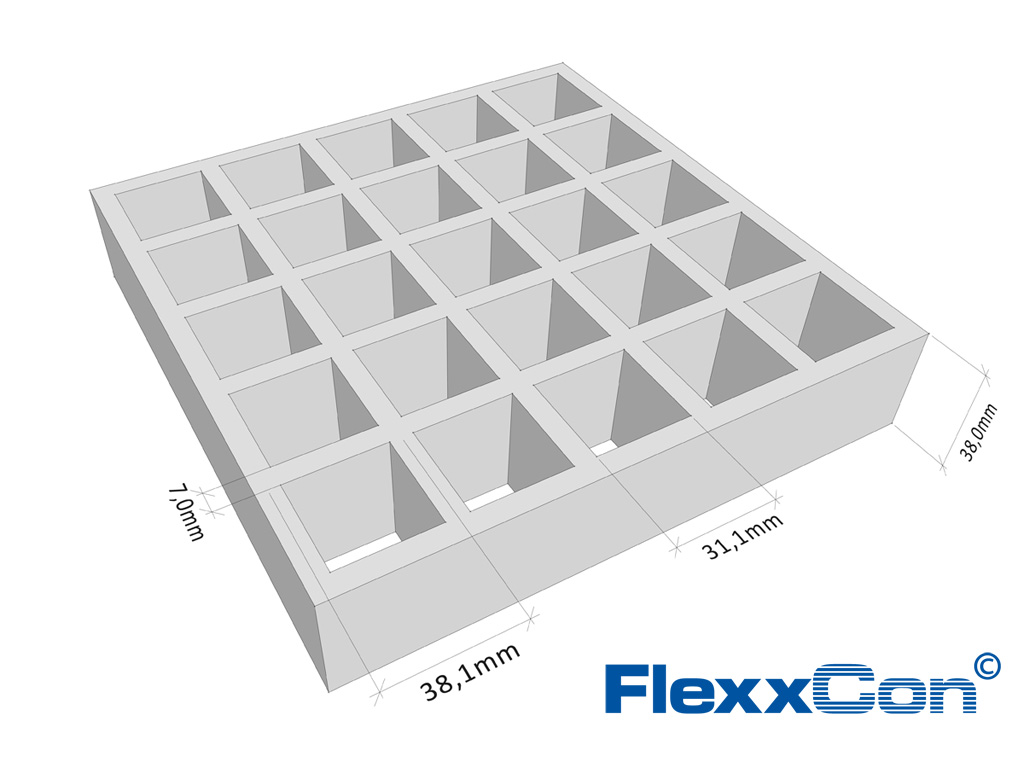

Mesh size38 mm x 38 mm
Top surfaceMeniscus Top surface
Weight18.1 kg/m²

This type of FRP grating is available in the following standard sizes:

2000 mm x 1000 mm   |   product code: R-42010-MGI3   |   Download datasheet
2440 mm x 1220 mm   |   product code: R-42412-MGI3   |   Download datasheet
3000 mm x 1000 mm   |   product code: R-43010-MGI3   |   Download datasheet
3048 mm x 915 mm     |   product code: R-43009-MGI3   |   Download datasheet
3048 mm x 1524 mm   |   product code: R-43015-MGI3   |   Download datasheet
3660 mm x 1220 mm   |   product code: R-43612-MGI3   |   Download datasheet

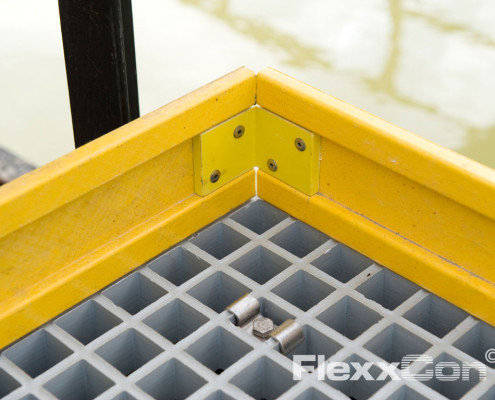

This FRP grating was applied in the following projects:
