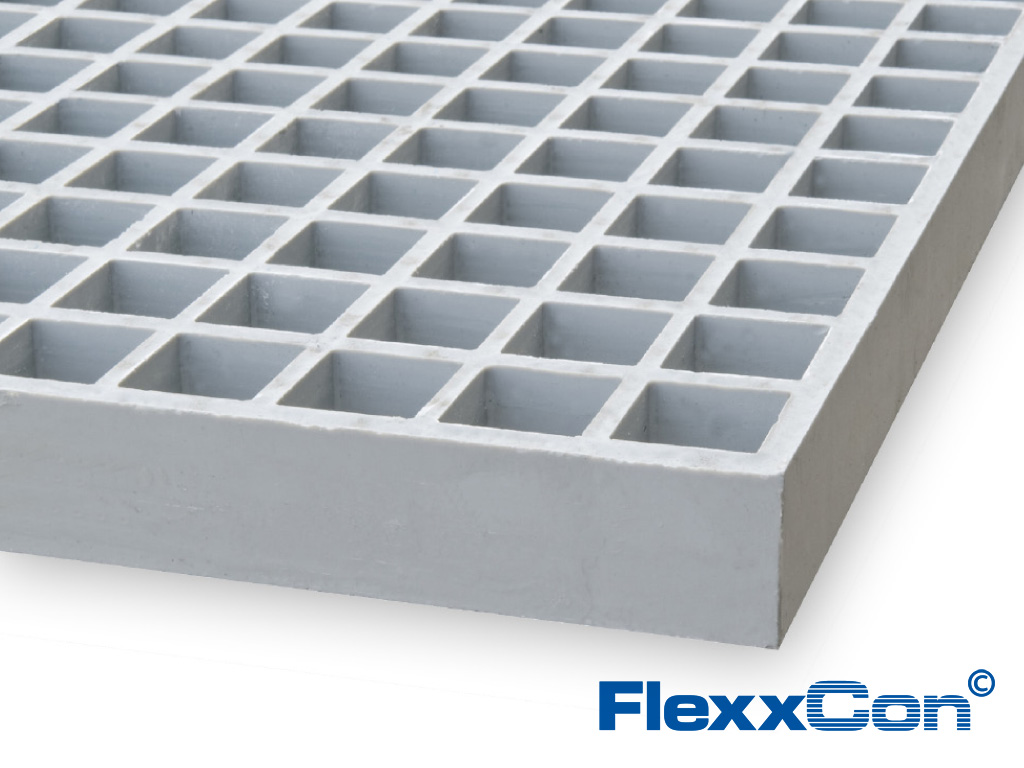

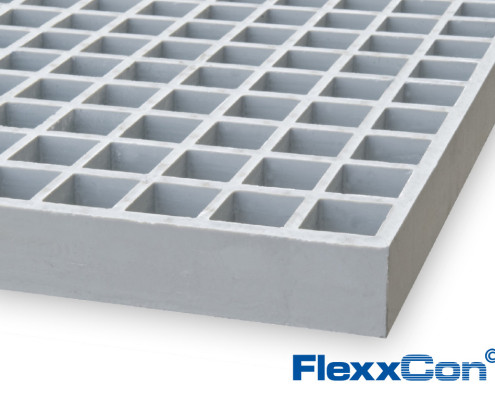

FRP grating 50mm 50×50 ISO Meniscus Grey

50 mm thick grating with 50 x 50 mm meshes can handle heavier loads than 38 mm grating. Under an industrial load, this type of grating can handle a span up to 1300 mm. Which is why this grating is often used for heavy loads and high spans. This grating is standard available in grey.

Thickness51 mm
ColourGrey, approximately RAL 7035
Resin typeIsophthalic Polyester

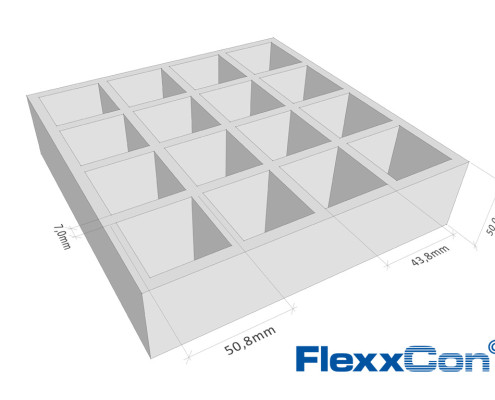

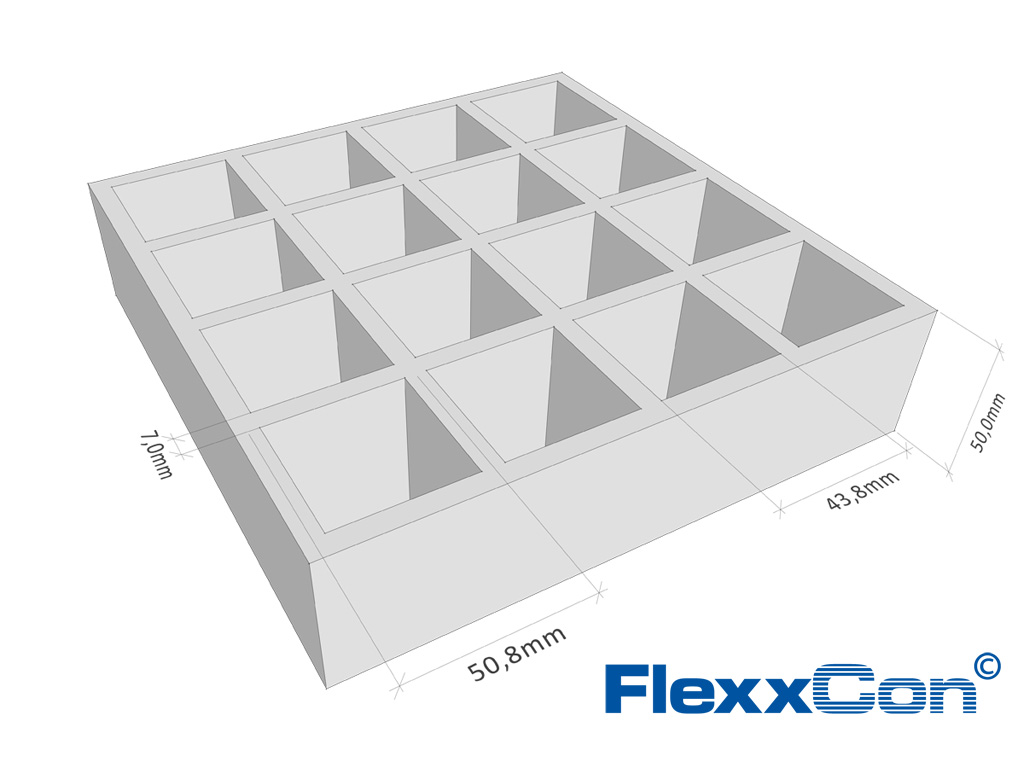

Mesh sizes50.8 mm x 50.8 mm
Top surfaceMeniscus Top surface
Weight19.6 kg/m²

This type of FRP grating is available in the following standard sizes:

3660 mm x 1220 mm   |   product code: R-53612-MGI5   |   Download datasheet
